New arrival
The machines
Five machine types, from magnetic drills to wire strippers.
Magnetic drilling, annular cutters, beveling, line boring and scrap recycling: 33 products in 8 ranges, each designed and built in Bhavnagar.
All 33 products-
-
A clean round hole in one pass.
HSS and TCT annular cutters and TCT holesaws for magnetic drills.
3 types
View cutters
-
Get the copper out of the cable.
Motorised wire stripping machines for copper and aluminium cable recovery.
9 machines
View machines
-
Clean bevels and true bores, on site.

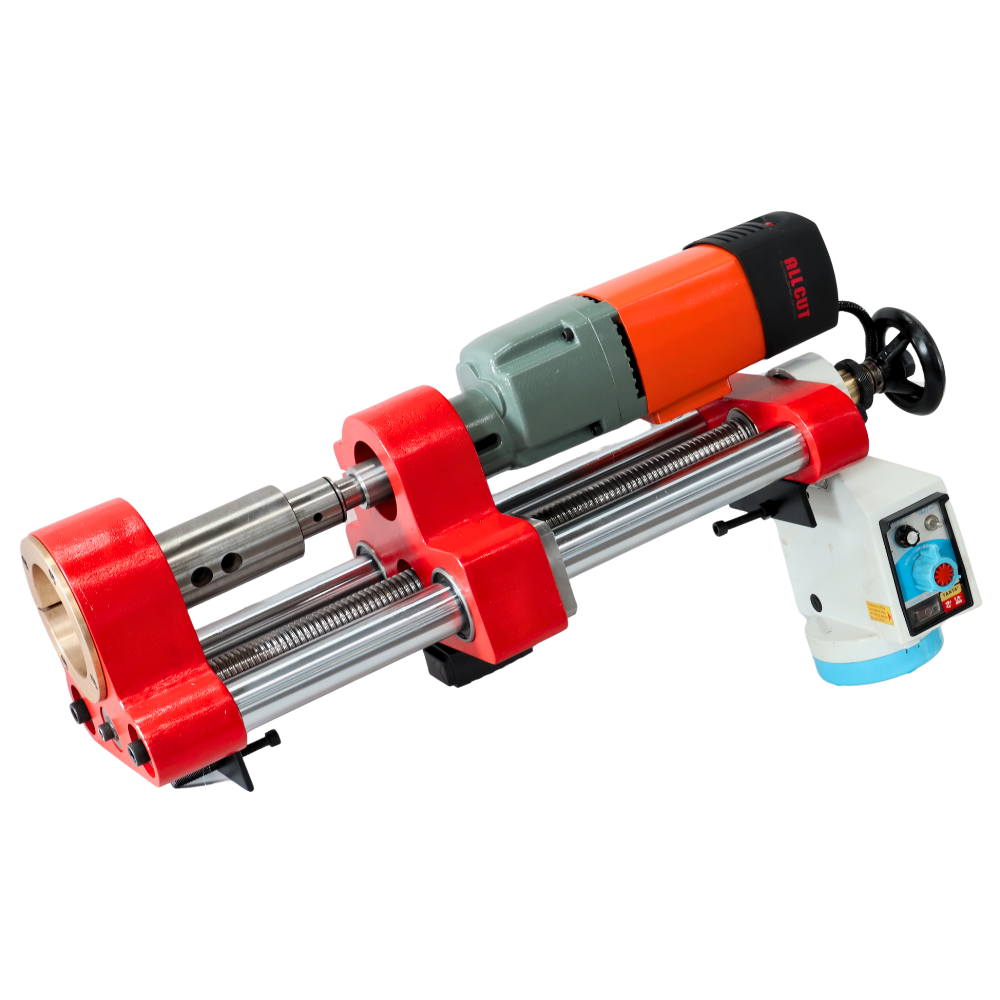

Plate and pipe beveling machines for weld preparation. Portable line boring for restoring worn bores on site.
4 machines
BeveleXProBore View machines
-
The right adaptor for the job.
Cutter adaptors, tapping chucks and drill accessories.
14 accessories
View accessories
Annular cutting, explained
Cut the ring, not the whole hole.
ALLCUT is the pioneer of annular cutting technology in India. An annular cutter cuts only the circumference of the hole; the core comes out as one solid slug.
- 01
Less metal to cut
Only a ring of material is removed, so holes are made in a fraction of the time of twist drilling.
- 02
Clean, accurate holes
Multiple cutting edges leave round, accurate holes with fewer burrs.
- 03
Less heat in the cut
Smooth chip evacuation keeps heat build-up to a minimum.
Selected machines
From compact drills to pipe beveling.
New arrival

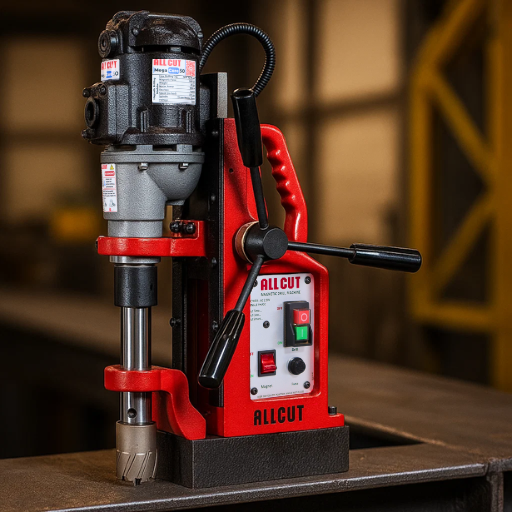

ALLCUT 40
Magnetic drill machine
Compact annular cutting with a direct 19 mm Weldon shank. The ALLCUT 40 pairs a 1400 W motor with a stroke-adjustable slide in a portable 10.5 kg machine.
- 40 mm
- Annular cutting
- 50/75 mm
- Cutter depth
- 1400 W
- Motor power
- 10.5 kg
- Weight
- Rigid slide with 120 mm stroke adjustment.
- Two-coil CNC machined steel magnet with 1000 kgf magnetic force.
- Overload protection and a handle that fits on either side.
- Supplied in a strong fibre carrying case.
Download product sheet · JPG (opens in a new tab)
Full technical data
- Core drilling capacity
- 40 mm
- Core drilling depth
- 50/75 mm
- Stroke length
- 120 mm
- Electromagnet L × W × H
- 175 × 85 × 35 mm
- Magnetic force
- 1000 kgf
- Size L × W × H
- 240 × 115 × 360 mm
- Weight
- 10.5 kg
- Motor power
- 1400 W
- Speed (no-load)
- 600 rpm
- Spindle
- 19 mm Weldon shank
- Voltage
- 220 V
Not sure which machine fits your job?
Answer a few questions about the hole or the weld and the finder shows the machines that suit it.
Made in Bhavnagar
Building drilling machines since 1950.
Over the years we have kept investing in research and development, and built a team of skilled engineers who bring the same care to every machine we make.
About ALLCUT- Founded
- 1950
- As a small workshop making radial and pillar drilling machines.
- Magnetic drills
- 1991
- First built at our Bhavnagar plant, starting with three models.
- Product line
- 33
- Products across 8 ranges, 17 of them magnetic drills.
For dealers
Become an authorised ALLCUT dealer
Join our dealer network and distribute ALLCUT machines. We offer competitive pricing, product training, marketing support and a brand customers already trust.
Dealer enquiryEnquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
